Overview

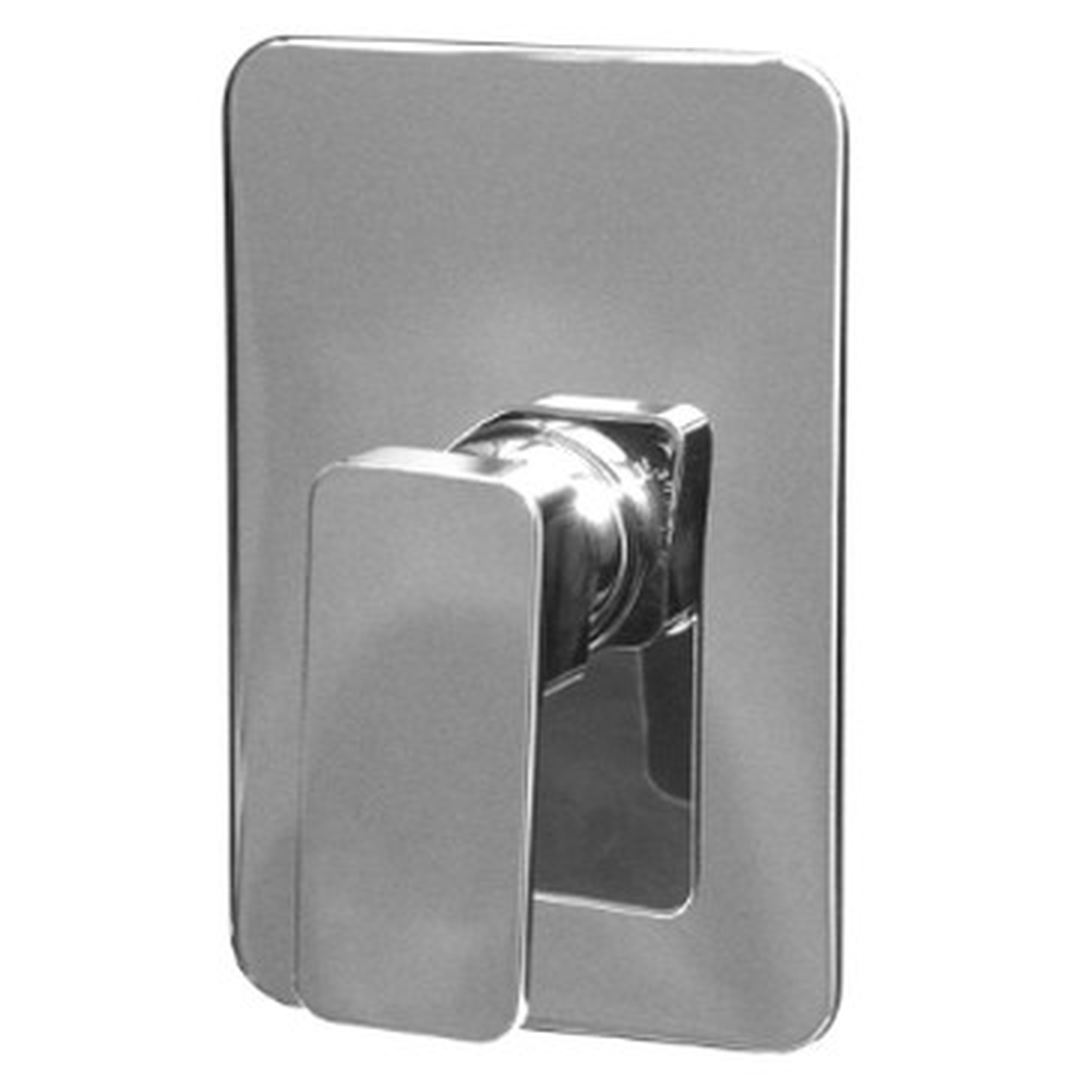

The Blutide concealed shower mixer body is the universal first-fix component for all Blutide in-wall shower installations. Designed for ease of installation, it accepts any Blutide trim kit finish — meaning the aesthetic decision can be made after tiling is complete.

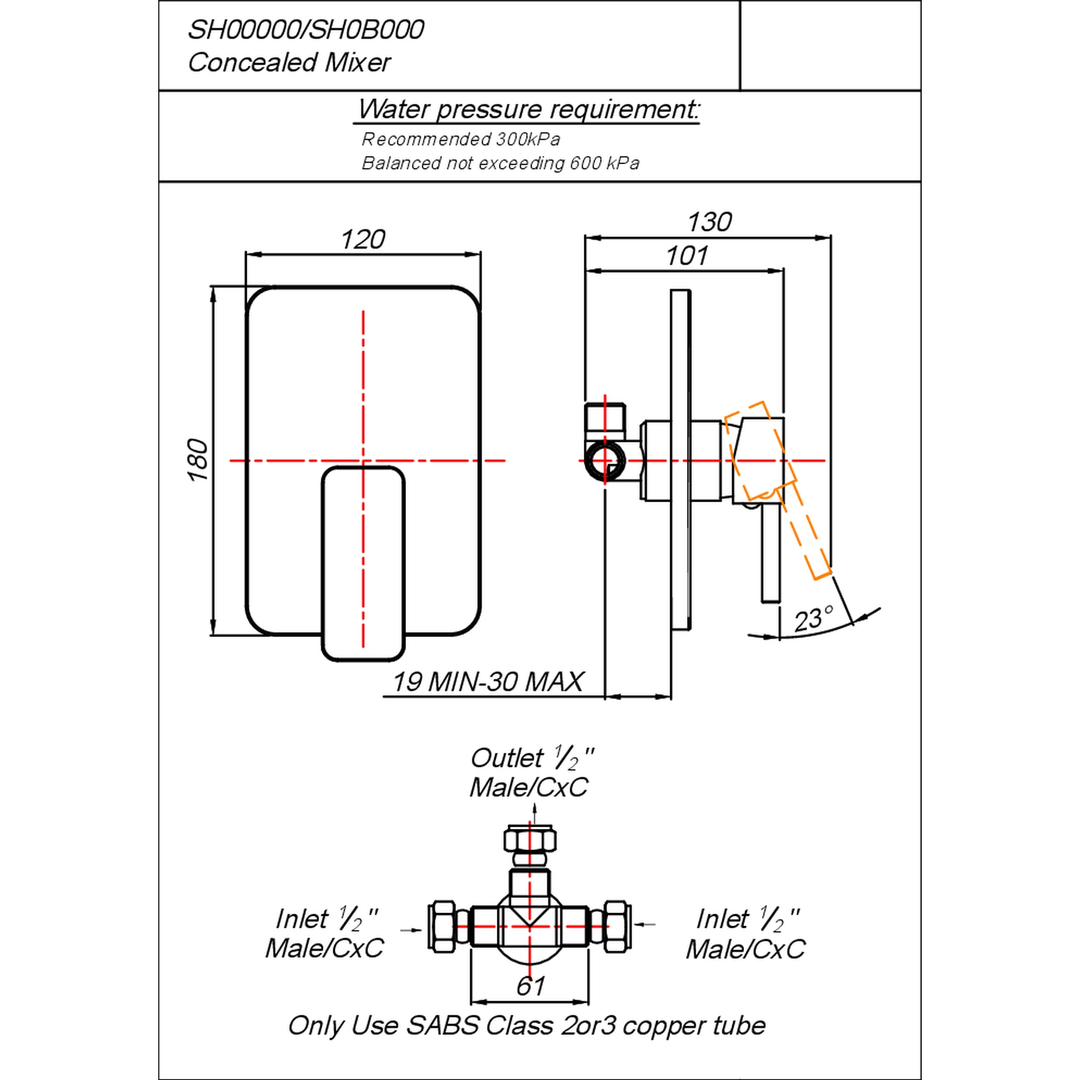

Dimensions

See technical data

Key Features

• Universal body — compatible with all Blutide trim kit finishes across Silk, Satin, and Lace ranges
• Includes 2 × 1/2? BSP × 15mm compression inlets and 1 × 1/2? BSP × 15mm compression outlet
• Supplied with nuts and 15mm compression rings for fast, cost-effective installation
• Protective plastic sleeve included to protect the body during plastering and tiling
• New plastic cover design with plumbing depth level indicator

What You Will Also Need

• Matching trim kit in chosen finish (Silk, Satin, or Lace)
• Isolating valves on hot and cold supply lines

Installation & Documents

View technical data and installation documentation →

Brand & Warranty

Blutide carries a 15-year guarantee on taps and mixers, backed by the full South African manufacturer warranty through EPS Bespoke Bathrooms.
